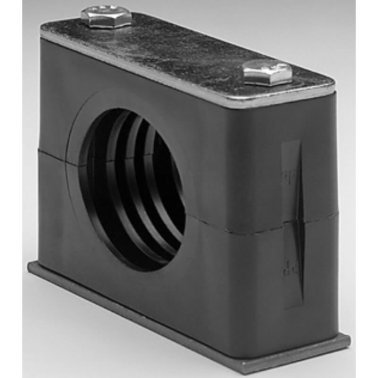

HRL 2 D 12.7 PP UNC - Hydac Support Clamp (2059054)

Item #: 432001240

Availability:

HRL 2 D 12.7 PP UNC
Also Known As: 02059054

Qty	Unit price
Quantity
1	$4.99
10	$4.68

This product must be purchased in groups of 50

quantity

Buy now

Type	Standard Duty Single Clamp
Series	HRL
Size	2
Arrangement	Single Clamp Stacking Module
Material	Polypropylene
Bolt Size	1/4-20 x 1-1/2, M6 x 35
Weight Arrangement A1	0.07 kg 0.16 lb
Metal Components Materials	Carbon Steel
Finish	Zinc Plated
Industry Standards/Certifications	DIN 3015
Tube Diameter	1/2"
Diameter D Bore Size	0.5" 12.7 mm

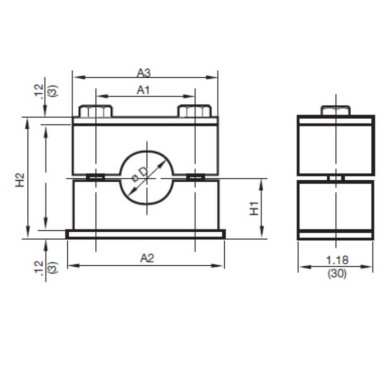

Dimension A1	1.02" 26 mm
Dimension A2	1.65" 42 mm
Dimension A3	1.57" 40 mm
Dimension H1	0.77" 19.5 mm
Dimension H2	1.53" 39 mm
Weight	.27 lb 0.12 kg
