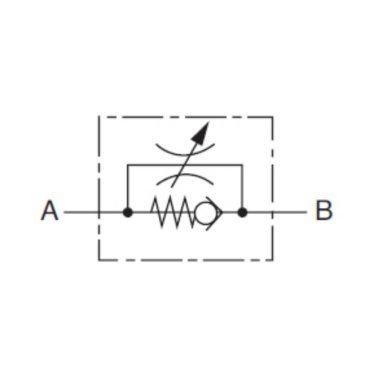

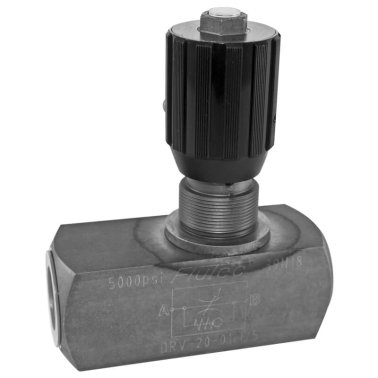

DRV-25-01.X/5-65 - Hydac Hydraulic Flow Control Valve (2071308)
Item #: 432004354
Availability:
DRV-25-01.X/5-65 Also Known As: 02071308
Customer Part Numbers:
Qty
Unit price
Quantity
1
$329.46
10
$309.37
Type
Flow Control Valve
Size
25
Mounting Type
In-Line Mounting
Connection Type
NPTF (ANSI B1.20.3)
Material
Carbon Steel
Operating Temperature [Max]
212 °F
Operating Temperature [Min]
-4 °F
Operating Pressure [Max]
345 bar 5000 psi
Cracking Pressure
65 psi
Thread Type
NPTF
Thread Size
1 1/4 in.
Thread Type 2
NPTF
Thread Size 2
1 1/4 in.
Valve Operator
Knob
Finish
Phosphated
Industry Standards/Certifications
American National Standards Institute (ANSI)
Diameter G
1.93" 49 mm
Diameter H
1.50" 38 mm
Height
5.91" 150 mm
Length
5.63" 143 mm
Dimension B
5.24" 133 mm
Dimension C
1.18" 30 mm
Dimension D
2.36" 60 mm
Dimension E
3.66" 93 mm
Dimension J
Pg 29 Thread
Weight
7.72 lb 3.50 kg
Additional Information/Notes
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 °F / 30 °C Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
DRV-25-01.X/5-65 - Hydac Hydraulic Flow Control Valve (2071308)
Finding the right HYDAC parts for your system is essential. MROStop is the HYDAC distributor you can trust to guide you in the right direction and help you find the components you need. As top HYDAC dealers, we have the expertise you're looking for. We're also known for our fast shipping and exceptional customer support, making the purchasing process seamless. If you have any questions about this product or any Hydac product, please call us at: 1(866)388-7558
HYDAC has a rich history in developing valve technology, consistently enhancing their range of valves over the years. Today, they boast an extensive and comprehensive selection that caters to virtually any hydraulic system requirement, be it stationary or mobile. HYDAC offers every type of valve you might need, including directional spool, directional poppet, pressure, flow control, and check valves, available in various forms like cartridge, slip-in, manifold-mounted, sandwich plates, or pipe valve.
