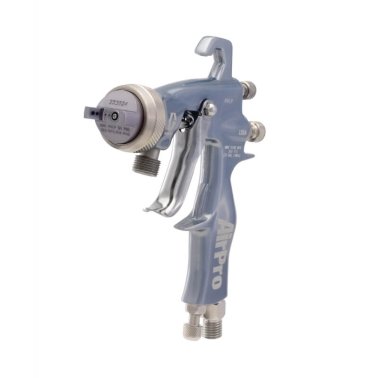

288936 Graco HVLP Spray Gun

Item #: 288821149

Availability:

Airpro Air Spray Pressure Feed Gun, HVLP, 0.030 Inch (0.8mm) Nozzle, For General Metal Applications

Model	AirPro
Product Type	Spray Gun
Air Inlet Size (in)	1/4
Air Inlet Thread Type	NPSM
Applicator Type	Manual
Bleed Type	Non-Bleeder
Compatible Material	CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
Feed Type	Pressure Feed
Gun Activation	Manual
Gun Included	1
Gun Type	HVLP Gun
Includes	Air Cap, Needle Assembly, Nozzle, Tool Kit
Max Air Inlet Pressure (MPa)	0.7
Max Air Inlet Pressure (psi)	100
Max Air Pressure (MPa)	0.7
Max Air Pressure (psi)	100
Max Fluid Pressure (MPa)	2.1
Max Fluid Pressure (psi)	300
Max Fluid Temperature (°F)	109
Spray Pattern	Flat
Spray Type	Air Spray
Technology Type	HVLP
Trigger Lock	Non-Locking
Trigger Type	Two-Finger
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Max Air Inlet Pressure (bar)	7
Max Air Inlet Pressure (kPa)	700
Max Air Pressure (bar)	7
Max Air Pressure (kPa)	700
Max Fluid Pressure (bar)	21
Max Fluid Pressure (kPa)	2100
Max Fluid Temperature (°C)	43
Gun Weight (g)	410
Application	Metal
Fluid Orifice Size (in)	0.03
Fluid Orifice Size (cm)	0.076
Fluid Orifice Size (mm)	0.8

288936 Graco HVLP Spray Gun

Airpro Air Spray Pressure Feed Gun, HVLP, 0.030 Inch (0.8mm) Nozzle, For General Metal Applications

Model

AirPro

Product Type

Spray Gun

Air Inlet Size (in)

1/4

Air Inlet Thread Type

NPSM

Applicator Type

Manual

Bleed Type

Non-Bleeder

Compatible Material

CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne

Feed Type

Pressure Feed

Gun Activation

Manual

Gun Included

1

Gun Type

HVLP Gun

Includes

Air Cap, Needle Assembly, Nozzle, Tool Kit

Max Air Inlet Pressure (MPa)

0.7

Max Air Inlet Pressure (psi)

100

Max Air Pressure (MPa)

0.7

Max Air Pressure (psi)

100

Max Fluid Pressure (MPa)

2.1

Max Fluid Pressure (psi)

300

Max Fluid Temperature (°F)

109

Spray Pattern

Flat

Spray Type

Air Spray

Technology Type

HVLP

Trigger Lock

Non-Locking

Trigger Type

Two-Finger

Air Inlet Size (cm)

0.635

Air Inlet Size (mm)

6.35

Max Air Inlet Pressure (bar)

7

Max Air Inlet Pressure (kPa)

700

Max Air Pressure (bar)

7

Max Air Pressure (kPa)

700

Max Fluid Pressure (bar)

21

Max Fluid Pressure (kPa)

2100

Max Fluid Temperature (°C)

43

Gun Weight (g)

410

Application

Metal

Fluid Orifice Size (in)

0.03

Fluid Orifice Size (cm)

0.076

Fluid Orifice Size (mm)

0.8

288936 Graco HVLP Spray Gun

288936 Graco AirPro Air Spray Pressure Feed Gun, HVLP, 0.030 inch (0.8 mm) Nozzle, for General Metal Applications
