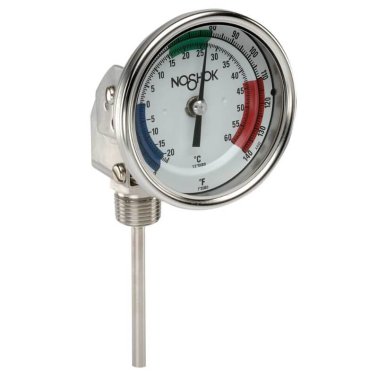

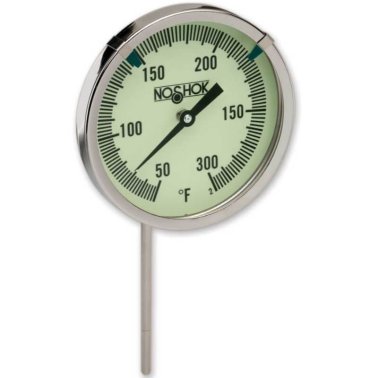

50-310-090-0/300-C Special Dials Bimetal Thermometers

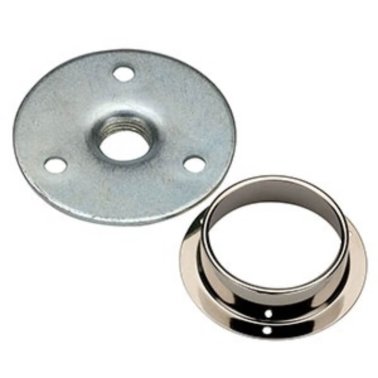

50-310-090-0/300-C Mounting Flanges Bimetal Thermometers

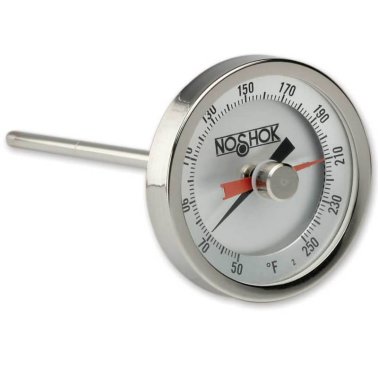

50-310-090-0/300-C Min or Max Indicating Pointer

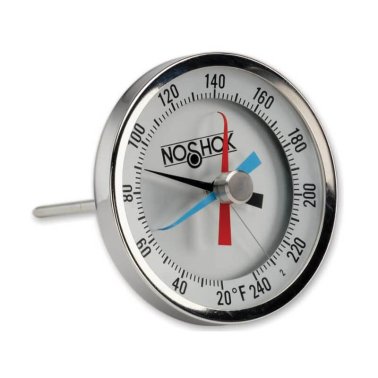

50-310-090-0/300-C Min and Max Indicating Pointers MIP2

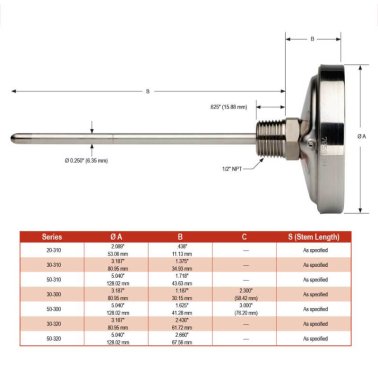

50-310-090-0/300-C 30 310 50 310 dimensions 1

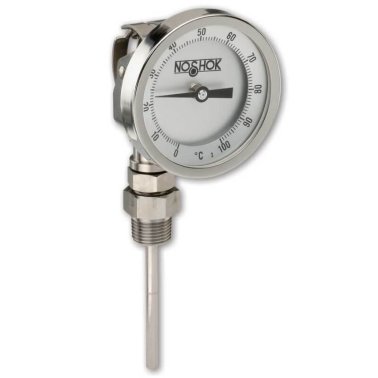

50-310-090-0/300-C 1 2 NPT Adjustable Union AU

50-310-090-0/300-C NOSHOK, Inc. 5" Dial Size Industrial Type Bimetal Thermometer with External Reset, Sanitary Tri-Clamp

Item #: 461005972

Availability:

Highest quality thermometers available on the market
Easy to calibrate with 1/16" Allen key
Corrosion-resistant 304 Stainless Steel case and bezel provide a hermetic seal to prevent lens fogging and moisture damage
Sanitary Tri-Clamp® options available
Single °F, single °C, and dual scale options available
Minimum or maximum indicating pointers are available in 3" and 5" sizes

Qty	Unit price
Quantity
1	$114.38

Type	Bimetal Thermometer
Connection Type	National Pipe Thread (NPT)
Material	304 Stainless Steel
Operating Temperature [Max]	300°F
Operating Temperature [Min]	0°F
Limits Over Temperature at 100 Percentage	Up to 250°F
Limits Over Temperature at 50 Percentage	250 to 500°F
Limits Over Temperature at Continuous Use Up to 800°F	550 to 1,000°F
Limits Over Temperature at Intermittent Use Over 800°F	550 to 1,000°F
Accuracy	1%
Accuracy Grade	A
Accuracy Standard	American Society of Mechanical Engineers (ASME) B40.3
Bimetal Coil	Silicone coated helix coil on ranges below 500 °F for vibration dampening, maximum heat transfer and response time
Case Type	Back Connection
Stem Diameter	0.250" 6.35mm
Stem Lengths	9"
Lens/Display Material	Instrument Glass
Dial	Anodized Aluminum with large black numbers and graduations
Dial Size	5"
Hermetic Seal	Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof
Note	Thermowells are recommended for pressure, corrosive fluids and high velocity applications. All 316 Stainless Steel construction (case, bezel, wetted parts) is available. Please consult factory.
Wetted Parts Material	304 Stainless Steel
Pointer	Aluminum, Black Finished
Recalibrator	External Reset
Temperature Scale	Single

50-310-090-0/300-C NOSHOK, Inc. 5" Dial Size Industrial Type Bimetal Thermometer with External Reset, Sanitary Tri-Clamp

Type

Bimetal Thermometer

Connection Type

National Pipe Thread (NPT)

Material

304 Stainless Steel

Operating Temperature [Max]

300°F

Operating Temperature [Min]

0°F

Limits Over Temperature at 100 Percentage

Up to 250°F

Limits Over Temperature at 50 Percentage

250 to 500°F

Limits Over Temperature at Continuous Use Up to 800°F

550 to 1,000°F

Limits Over Temperature at Intermittent Use Over 800°F

550 to 1,000°F

Accuracy

1%

Accuracy Grade

A

Accuracy Standard

American Society of Mechanical Engineers (ASME) B40.3

Bimetal Coil

Silicone coated helix coil on ranges below 500 °F for vibration dampening, maximum heat transfer and response time

Case Type

Back Connection

Stem Diameter

0.250"6.35mm

Stem Lengths

9"

Lens/Display Material

Instrument Glass

Dial

Anodized Aluminum with large black numbers and graduations

Dial Size

5"

Hermetic Seal

Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof

Note

Thermowells are recommended for pressure, corrosive fluids and high velocity applications.All 316 Stainless Steel construction (case, bezel, wetted parts) is available. Please consult factory.

Wetted Parts Material

304 Stainless Steel

Pointer

Aluminum, Black Finished

Recalibrator

External Reset

Temperature Scale

Single

50-310-090-0/300-C NOSHOK, 5" Dial Size Industrial Type Bimetal Thermometer with External Reset, Sanitary Tri-Clamp®

0.250"
6.35mm

Thermowells are recommended for pressure, corrosive fluids and high velocity applications.

All 316 Stainless Steel construction (case, bezel, wetted parts) is available. Please consult factory.
