TESTPOINT 1620 (M12 X 1.5) MC/NBR - Hydac Test Fitting (632615)
Item #: 432000514
Availability:
2103-01-13.00HD TESTPOINT 1620 (M12 X 1.5) MC/NBR Also Known As: 00632615
Customer Part Numbers:
Qty
Unit price
Quantity
1
$17.01
10
$15.97
Type
Test Points
Series
1620
Connection Type
Metric
Connection Size
M12 X 1.5
Material
Carbon Steel
Seal Material
Buna-N
Media
Suitable for Petroleum-Based Fluids and Gaseous Media
Operating Pressure [Max]
630 bar 9000 psi
Cap Type
Zinc-Plated
Cap Material
Metal
Finish
Zinc Plated
Wrench Size
17 mm

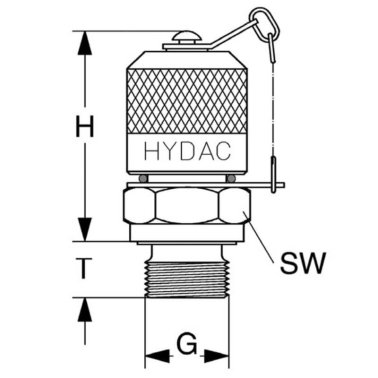

Dimension H
36 mm
Dimension T
10 mm
Additional Information/Notes
Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print. For port configuration drawings contact HYDAC. All Test Points have a male connection thread (G)
