Phoenix Contact offers cutting-edge products and solutions that cover everything you need in connection technology, electronics, and automation.
2963776 Phoenix Contact PSR-SCP- 24UC/ESM4/3X1/1X2/B
Item #: 753017790
PCB connector
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat 4, PL e according to EN ISO 13849, single or two-channel operation, 3 enabling current paths, nominal input voltage of 24 V AC/DC, plug-in screw terminal blocks.
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat 4, PL e according to EN ISO 13849, single or two-channel operation, 3 enabling current paths, nominal input voltage of 24 V AC/DC, plug-in screw terminal blocks.
- Up to Cat 4/PL e according to EN ISO 13849-1, SILCL 3 according to EN 62061, SIL 3 according to IEC 61508
- Single and two-channel control
- 3 enabling current paths, 1 signaling current path
- Manual and monitored activation
2302201 Phoenix Contact CABLE-D37SUB/B/S/100/KONFEK/S
Item #: 753023012
Feed-Through Terminal Block
Pre-assembled round cables to couple the VARIOFACE interface modules.
Pre-assembled round cables to couple the VARIOFACE interface modules.
2861878 Phoenix Contact IB IL 24/230 DOR4/W-PAC
Item #: 753023762
Safety Relay
Inline digital output terminal complete with accessories (plug and labeling field) 4 relay PDT gold contacts 5 - 253 V AC 3 A
Inline digital output terminal complete with accessories (plug and labeling field) 4 relay PDT gold contacts 5 - 253 V AC 3 A
- Floating connections for 4 actuators
- Safe isolation
- Diagnostic and status indicators
3213125 Phoenix Contact FBS 10-3 5 BU
Item #: 753028900
Sensor/Actuator Box
Jumper Number of positions: 10 Color: blue
Jumper Number of positions: 10 Color: blue
- The 2 to 50 positions
- Jumpers can bridge up to 50 terminal blocks in the two bridge shafts of the CLIPLINE complete system in one step
2800644 Phoenix Contact VAL-MS-T1/T2 335/12.5/4+0-FM
Item #: 753028995
Patch Panel
Plug-in varistor-based lightning arrester for 3-phase TN-S power supply networks with separate N and PE (5-conductor system: L1 L2 L3 N PE) for Lightning Protection Levels III and IV with remote indication contact.
Plug-in varistor-based lightning arrester for 3-phase TN-S power supply networks with separate N and PE (5-conductor system: L1 L2 L3 N PE) for Lightning Protection Levels III and IV with remote indication contact.
- Plugs can be checked with CHECKMASTER
- With or without floating remote indication contact
- Thermal disconnect device for each individual plug
- Mechanical coding of all slots
- Optical, mechanical status indication for the individual arresters

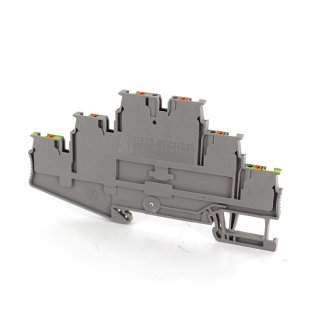

3213768 Phoenix Contact PT 1 5/S-PE/L/L
Item #: 753030046
Surge Protection Device
Multi-level terminal block Cross section: 0.14 mm² - 1.5 mm² AWG: 26 - 16 Connection type: Push-in connection Width: 3.5 mm Color: gray Mounting type: NS 35/7 5 NS 35/15
Multi-level terminal block Cross section: 0.14 mm² - 1.5 mm² AWG: 26 - 16 Connection type: Push-in connection Width: 3.5 mm Color: gray Mounting type: NS 35/7 5 NS 35/15
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- The compact design and front connection enable wiring in a confined space
- In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
