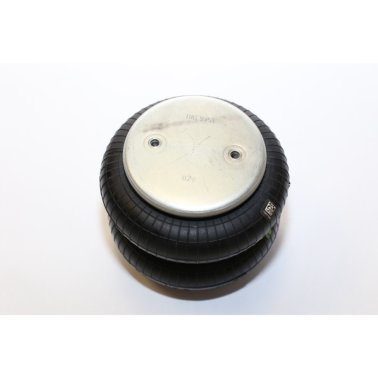

FD 200-19 CI 3/4 NPT OS Continental Bellows Style, Double Convoluted Air Spring
Item #: 682000230
Availability:
Also Known As: 74518, FD200-19CI3/4NPTOS Direct Drop In Crossover / Replacements: Firestone: W01-358-6900 Goodyear / Enidine: 2B8-157, 2B9-204, 2B9-207, 2B9-207, 2B9-216, YI-2B9-216
Customer Part Numbers:
Qty
Unit price
Quantity
1
$242.67
Compressed Height
2.95"
Max Expanded Height
10.8"
Max Diameter
9.84"
Max Inflation Pressure
120 psi
Max Stroke
7.85"
Air Inlet Type
Imperial
Air Inlet
3/4"
Series
C
Min Temperature
-76 °F
Max Temperature
158 °F
Bellows Type
Double Convoluted
Weight
6.61 lbs.
FD 200-19 CI 3/4 NPT OS Continental Bellows Style, Double Convoluted Air Spring
MROStop is an official Continental Air Spring distributor, If you have any questions about the FD 200-19 CI 3/4 NPT OS Continental Bellows Style, Double Convoluted Air Spring or any ContiTech products, please call us at: 1(866)388-7558
MROStop, as an official Continental distributor, is fully equipped with training and knowledge about Continental's extensive range of Air Springs. We ensure that you get all the support you need when purchasing Continental Air Springs.
Continental air springs come in single, double, or triple bellow designs and serve various roles in different suspensions and applications. You'll find Continental air springs in a range of trucks, trailers, and on industrial sites. These air springs stand out for their ability to execute linear or angular movements with a much lower profile than traditional air cylinders. They are incredibly adaptable and serve a variety of functions in machinery used for pressing, tensioning, rolling, conveying, lifting, and packaging. Additionally, as vibration dampers, they effectively minimize the detrimental impact of vibration.
FD 200-19 CI 3/4 NPT OS, Bellows Style Industrial Air Spring, Double Convoluted, 200cm sq Effective Area, 19cm Max Stroke, Crimped Bead Plate, Female Mounting Threads, 3/4 NPT, Offset
